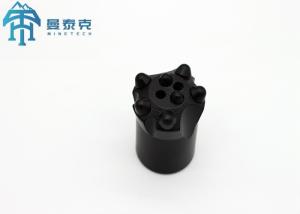

36mm 7 buttons 11 degree Tungsten Carbide Tapered Button Bit
Description:
Cemented carbide is one of the most successful composite engineering materials produced.
Its unique combination of strength,hardness and toughness satisfies the most demanding applications – but working with such high stresses, inserts and buttons are more subject to wear.
MTH also use the same hot inserting technology as including the steel materials and Heat treatment.
Button bits should be reground when penetrati on rat es drop or if the cemented carbide shows signs of damage
Fixed grinding routines often result in good working practices.
Bits for instance, can be examined and then reground after a specific number of holes, or at the end of the shift. Premature grinding is not necessarily uneconomical since less carbide needs to be ground off. It is better to regrind rather than reducing productivity due to damage.
Correct grinding adds considerably to drill bit service life. But equally important, it also enhances the performance of the entire drilling operation, especially hole straightness.
Product Characteristic:
| For 22 mm (7/8") rod. 11° taper. Short Skirt. |
| Diameter | Buttons | Flushing hole | Length | Weight |
| 34 | 1 11/32 | 5x7 | 2x7 | 1 | 1 | 50 | 0.4 |
| 36 | 1 27/64 | 5x8 | 2x7 | 1 | 1 | 50 | 0.45 |
| 38 | 1 1/2 | 5x9 | 2x7 | 1 | 2 | 50 | 0.45 |
| 40 | 1 37/64 | 5x9 | 2x8 | 1 | 2 | 50 | 0.48
|
Company Profile:
Hebei Minetech Machinery Technology Co, Ltd. is an joint venture enterprise with Europe Partner, which is located in Shijiazhuang City, Hebei Province,China. Our company is specialized in manufacturing and exporting of mining machinery, such as hydraulic and pneumatic drill machine, roof bolter and drilling consumption, like drill bit and drill rod with own factory in Shijiazhuang City.
With our rich expenience for over a decade and with professional engineers andsales team, we focus on providing complete solutions for mining machinery.
Target markets is gradually shifted from domestic market to international market, products are exported to more than thirty countries and regions, including Southeast Asia, the United States, Germany, Britain, South Africa, Poland, Russia, Middle Asia, South America and so on, and established a good brand and reputation international market.
Product Tags:
|
|
36mm 7 Buttons Tapered Drilling Tools 11 Degree Tungsten Carbide Images
|
